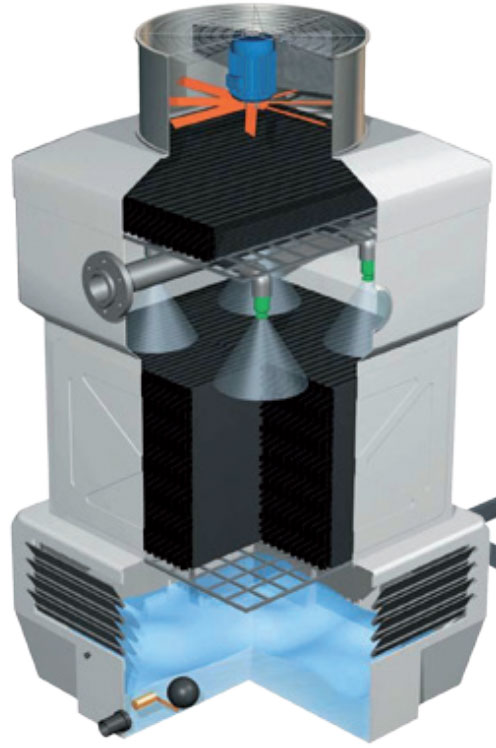

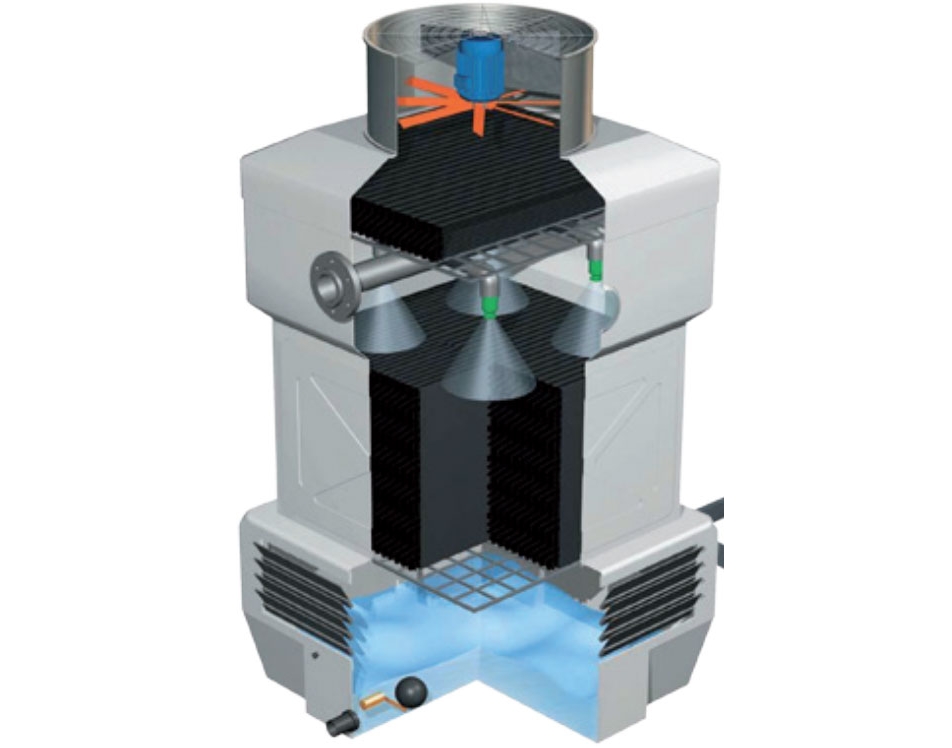

THÁP GIẢI NHIỆT MẠCH HỞ MITA - Italy _ PMS Series
Open circuit cooling towers PMS Series
Nhà sản xuất: MITA - ITALY
Type: PMS
Download: Brochure Tháp Giải Nhiệt MITA
Download: Datasheet Tháp Giải Nhiệt MITA _ PMS series
Công ty Môi Trường Hành Trình Xanh hân hạnh là nhà nhập khẩu và phân phối chính thức Tháp Giải Nhiệt MITA tại Việt Nam. Chúng tôi cam kết cung cấp sản phẩm và dịch vụ tốt nhất tới Quý Khách hàng.
The PMS series is suggested for small size plants, all models are totally pre-assembled at our factory.
- Axial motor-fan with direct coupling, low installed power, low noise levels.
- Tower body and tank entirely made of fibreglass, corrosion-free material.
- Distribution system in PVC, PP or PE equipped with wide non-clogging PP spray nozzles.
- Fill pack with different kinds of air/water channels, suitable for the use with different water types.
- Capacity: from 18 to 860 KW (indicative capacity referring to a machine, thermal gradient 5°C).
For all basic models the following special versions are available:
- ATT: for high temperature water, with max peaks of 80°C
- N: for water containing low quantities of suspended solids
- N-ATT: for high temperature water (with max peaks of 80°C containing low quantities of suspended solids.
- GS: for water containing large quantities of suspended solid
Accesories and construction variants
The following accessories and/or construction variants are available for all models under request:
- Resistencia eléctrica trifásica con un termostato de control
- Three-phase heating element with control thermostat
- Minimum level cut-out switch
- Two-speed motor with graduated thermostat, automatic cascade control panel, or control system with frequency inverter
- Manhole for easy inspection and access to the internal components
